Our Bare Wire Division provides Annealed Bare Copper Wires to the thriving Cable industry from 6mm onwards.

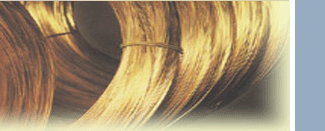

The Enameled Copper Wire Division provides the following :

Coating
Polyester
Modified Polyester
Polyesterimide
Polyesterimide
+ Polyamide - IMIDE
Temp class
Heat shock temp
130 C
155 C
155 C
175 C
180 C
200 C
200 C
220 C
Specification (Old)

(New)
IS 4800 Part V


IS 13730 - 34

IS 4800 Part V type II

IS 13730 - 3
S 4800 Part IX


IS 13730 - 8

IS 4800 Part XIII


IS 13730 - 13

Distinctive Marking
P
MPE
H
DC
General Applications
Gen. Purpose Rotating & Static Electricity Equipments Oil Filled Transformers etc.
D.C. Induction Motors, Hand Tools, Household Appliances
FHP Motors for Hand Tools, Hermatic Application, Ignition Coils etc.
Sp. Hermatic Motors, Coreless coils, Voice coils etc.
Technical Specifications
Cut Through
Heat Shock
Abrasion Resistance
Mechanical Properties
Flexibility & Adherance
Resistance to Freon -22
240 C
Fair
Good
Fair
Good
Fails
240 C
Good
Good
Good
Good
Fails
300 C
V. Good
V. Good
V. Good
V. Good
Good
320 C
Excellent
Excellent
Excellent
Excellent
V. Good
